30025 Single band filter sets fluorescence FITC

Part Number:30025 FITC

Fluorophore Displayed:Alexa Fluor® 488,Fluo-4,FITC ,SpectrumGreen,SYBR Green,GFP (EGFP),rsGFP, BODIPY, 5-5-FAM and Alexa Fluor 490

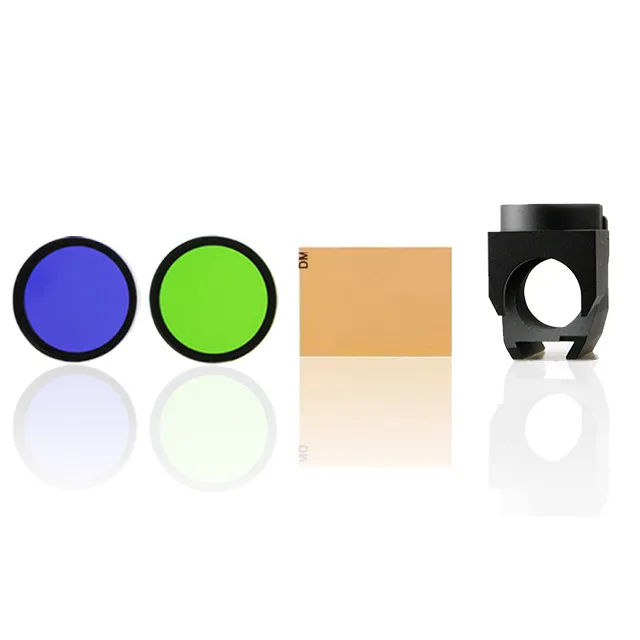

Individual filters and filter sets (no cube)These filters sets contain individual filters.

Type Size Part Number AOI Price
Single Band Exciter φ25 x 5.0 mm 30025-BP475 $-
Single Band Emitter φ25 x 3.5 mm 30025-BP530 $-
Single Dichroic Mirror 36 x 25.7 x 1.05mm 30025-DM500 45° $-

High Contrast FITC set in life science field which contains exciter, emitter and dichroic mirror designed to fit in standard filter cubes from the leading microscope brand, suitable for LED light sources. It is optimized for isothiocyanate (FITC) and other fluorophores such as rsGFP, BODIPY, 5-5-FAM, Fluo-4, and Alexa Fluor 490.

Optical Specifications

Filter Type30025 Single band filter set FITC
Coating TypeHard Coating
Angle of Incidence0°±5°
Central BlockingOD>5
Cutoff BlockingOD>3
Blocking Band300~1100nm
Angle of Incidence0°±5°
Central BlockingOD>5
Cutoff BlockingOD>3
Blocking Band300~1100nm
Angle of Incidence45°±1°
Edge Wavelength500nm

General Filter Specifications

Diameter Dimensions25 mm
Diameter Tolerance (mounted)± 0.1 mm
EX Filter Thickness (mounted) 5.0 mm
EM Filter Thickness (mounted) 3.5 mm
Filter Thickness Tolerance (mounted)± 0.1 mm
Clear Aperture≥ 21 mm
DM Square Dimensions 36 x 25.7 x 1.05mm
DM Thickness(unmounted)1.05 mm
Thickness Tolerance (unmounted)± 0.1 mm
SubstratesFused Silica, B270
Compatible MicroscopesMost common Nikon, Olympus, Zeiss and Leica microscopes
