Part Number: PN 33011 DAPI/Green/Orange

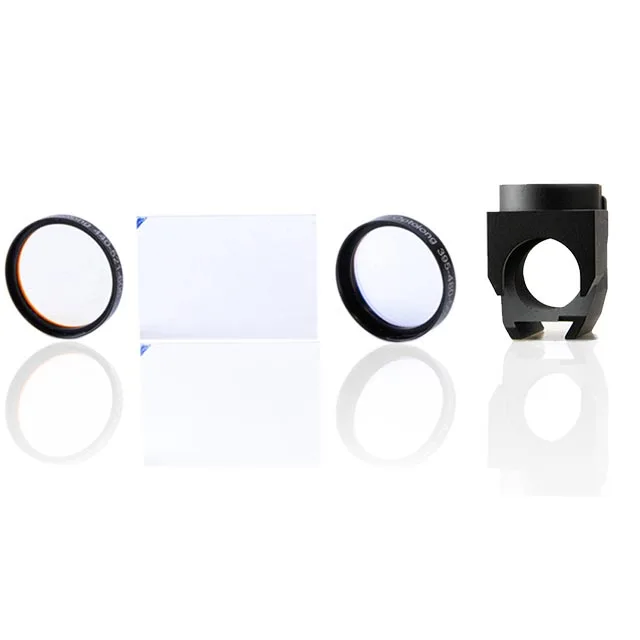

| Type | Size | Part Number | AOI | Price |
|---|---|---|---|---|
| Triple Band Exciter | φ25 x 5.0 mm | 33011-BP395-480-560nm | 0° | $- |
| Triple Band Emitter | φ25 x 3.5 mm | 33011-BP440-521-606nm | 0° | $- |
| Triple Dichroic Mirror | 36 x 25.7 x 1.05mm | 33011-DM410-500-580nm | 45° | $- |
| Total: |
|
|||
Inquiry Form
High-Performance FISH Triple band-Set DAPI/Green/Orange, which contains three emissions (barrier) filter bandpass regions allows the detection of blue, green, and orange-red emissions from up to three fluorochromes simultaneously. Viewing of DAPI, Green, and Orange FISH probes.
Optical Specifications
| Filter Type | 33011 Triple filter set DAPI/Green/Orange FISH Probes |
| Coating Type | Hard Coating |
| Angle of Incidence | 0°±5° |
| Exciter | 395-480-560nm |
| Transmission | >10% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200~1100nm |
| Angle of Incidence | 0°±5° |
| Emitter | 440-521-605nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200～1100nm |
| Angle of Incidence | 45°±1° |
| Edge Wavelength | 410-500-580nm |
| Reflection | R>98% |
| Transmission | T>85% |
General Filter Specifications
| Diameter Dimensions | 25 mm |
| Diameter Tolerance (mounted) | ± 0.1 mm |
| EX Filter Thickness (mounted) | 5.0 mm |
| EM Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| DM Square Dimensions | 36 x 25.7 x 1.05mm |
| DM Thickness(unmounted) | 1.05 mm |
| Thickness Tolerance (unmounted) | ± 0.1 mm |
| Flatness | λ/4 |
| Parallelism | 30″ |
| Scratch-Dig | 60-40 |
| Substrates | Fused Silica, B270 |
| Compatible Microscopes | Most common Nikon, Olympus, Zeiss and Leica microscopes |
