Part Number:30021 CY5

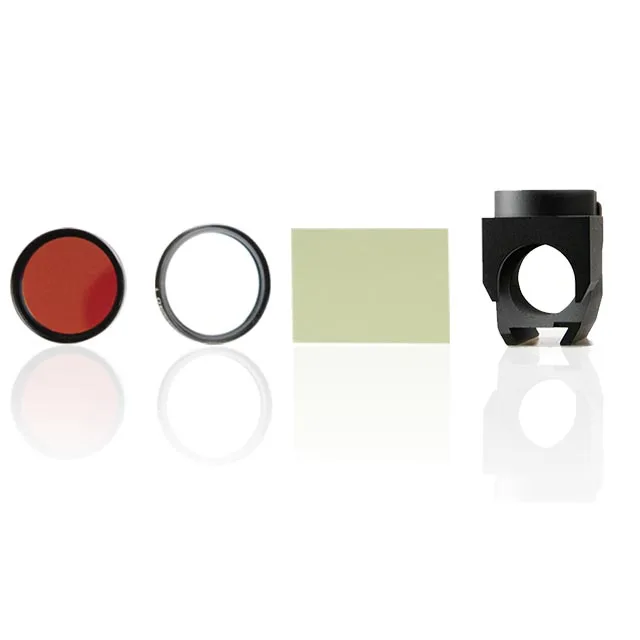

Individual filters and filter sets (no cube)，These filters sets contain individual filters.
| Type | Size | Part Number | AOI | Price |
|---|---|---|---|---|
| Single Band Exciter | φ25 x 5.0 mm | 30021-BP630 | 0° | $- |
| Single Band Emitter | φ25 x 3.5 mm | 30021-BP695 | 0° | $- |
| Single Dichroic Mirror | 36 x 25.7 x 1.05mm | 30021-DM662 | 45° | $- |
| Total: |
|
|||
Inquiry Form
High Contrast,high signal-to-noise ratio CY5 set in life science field which contains exciter, emitter and dichroic mirror designed to fit in standard filter cubes from the leading microscope brand. It is optimized for fluorescein is Cy5™and deep red fluorophores, such as Alexa Fluor® 647, Alexa Fluor® 660, BODIPY 650/665-X, SpectrumFRed (Far Red), SYTO 60.
Optical Specifications
| Filter Type | 30021 Single band filter set CY5 |
| Coating Type | Hard Coating |
| Angle of Incidence | 0°±5° |
| Exciter | 630nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 300~1100nm |
| Angle of Incidence | 0°±5° |
| Emitter | 695nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 300～1100nm |
| Angle of Incidence | 45°±1° |
| Edge Wavelength | 662nm |
| Reflection | R>98% |
| Transmission | T>85% |
General Filter Specifications
| Diameter Dimensions | 25 mm |
| Diameter Tolerance (mounted) | ± 0.1 mm |
| EX Filter Thickness (mounted) | 5.0 mm |
| EM Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| DM Square Dimensions | 36 x 25.7 x 1.05mm |
| DM Thickness(unmounted) | 1.05 mm |
| Thickness Tolerance (unmounted) | ± 0.1 mm |
| Flatness | λ/4 |
| Parallelism | 30″ |
| Scratch-Dig | 60-40 |
| Substrates | Fused Silica, B270 |
| Compatible Microscopes | Most common Nikon, Olympus, Zeiss and Leica microscopes |
