Part Number: 32012 Green/Orange
Fluorophore Displayed:

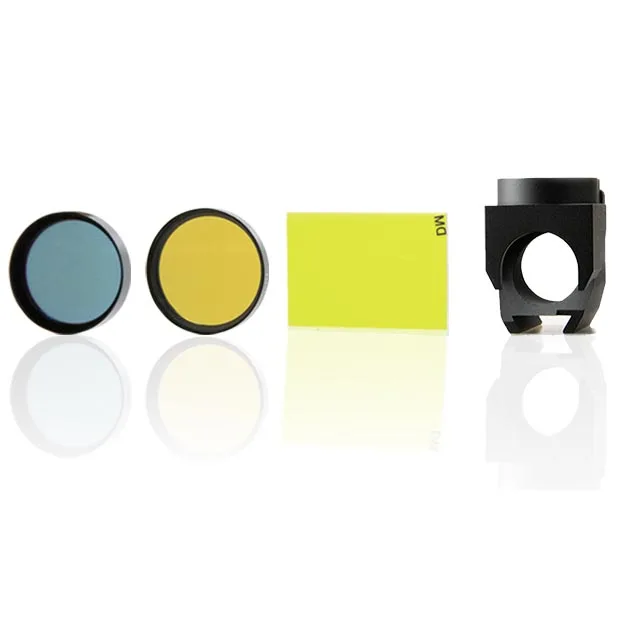

Individual filters and filter sets (no cube)，These filters sets contain individual filters.
| Type | Size | Part Number | AOI | Price |
|---|---|---|---|---|
| Dual Band Exciter | φ25 x 5.0 mm | 32012-BP480-560nm | 0° | $- |
| Dual Band Emitter | φ25 x 3.5 mm | 32012-BP525-605nm | 0° | $- |
| Dual Dichroic Mirror | 36 x 25.7 x 1.05mm | 32012-DM500-580nm | 45° | $- |
| Total: |
|
|||
Inquiry Form
High-Performance FISH dual band-Set Green/Orange, which contains dual bandpass excitation, emission (barrier) filters, and a dual dichroic mirror, can be used to stain Green and Orange FISH probes. with steep bandpass transitions between reflection and transmission regions, the dual excitations and emission signals are separated with minimal crossover interference.
Optical Specifications
| Filter Type | 32012 Dualband filter set Green/Orange FISH Probes |
| Coating Type | Hard Coating |
| Angle of Incidence | 0°±5° |
| Exciter | 480-560nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200~1100nm |
| Angle of Incidence | 0°±5° |
| Emitter | 525-605nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200～1100nm |
| Angle of Incidence | 45°±1° |
| Edge Wavelength | 500-580nm |
| Reflection | R>98% |
| Transmission | T>85% |
General Filter Specifications
| Diameter Dimensions | 25 mm |
| Diameter Tolerance (mounted) | ± 0.1 mm |
| EX Filter Thickness (mounted) | 5.0 mm |
| EM Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| DM Square Dimensions | 36 x 25.7 x 1.05mm |
| DM Thickness(unmounted) | 1.05 mm |
| Thickness Tolerance (unmounted) | ± 0.1 mm |
| Flatness | λ/4 |
| Parallelism | 30″ |
| Scratch-Dig | 60-40 |
| Substrates | Fused Silica, B270 |
| Compatible Microscopes | Most common Nikon, Olympus, Zeiss and Leica microscopes |
