31005 Longpass filter set LP-Texas Red

Part Number: 31005 LP-Texas Red

Fluorophore Displayed:FusionRed,mPlum,TurboFP650

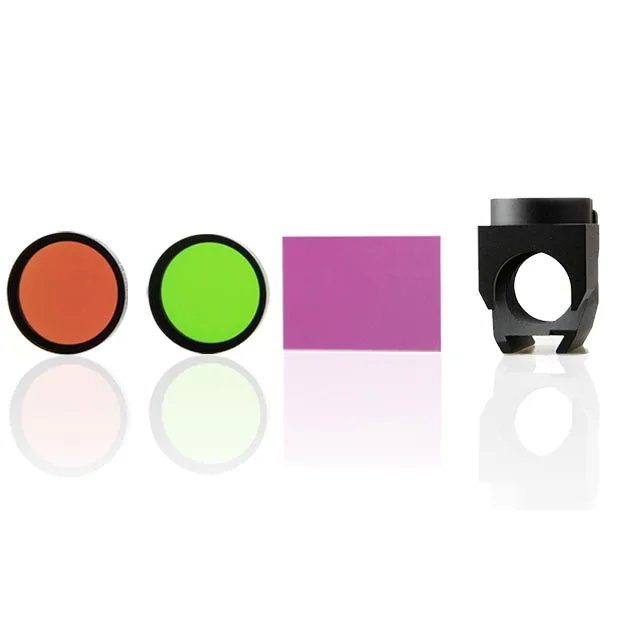

Individual filters and filter sets (no cube)These filters sets contain individual filters.

Type Size Part Number AOI Price
Single Band Exciter φ25 x 5.0 mm 31005-BP530nm $-
Long pass Emitter φ25 x 3.5 mm 31005-LP590nm $-
Single Dichroic Mirror 36 x 25.7 x 1.05mm 31005-DM575nm 45° $-
Total:

This filter set is ideal for use with TexasRed and other similar fluorophores that contain a bandpass exciter, a long pass emitter, and a dichroic mirror, with transmission levels >90%, blocking far exceeding OD 6 offer affordably priced filter sets provide the same durability and longevity as our single bandpass filter sets PN30026 TexasRed.Used hard-coated working well and quality guaranty by Optolong team.

Optical Specifications

Filter Type31005 Longpass band filter set LP-Texas Red
Coating TypeHard Coating
Angle of Incidence0°±5°
Exciter530nm
Transmission>85%
Central BlockingOD>5
Cutoff BlockingOD>3
Blocking Band200~1100nm
Angle of Incidence0°±5°
Emitter590nm
Transmission>85%@610-800nm
Central BlockingOD>5@300-575nm
Angle of Incidence45°±1°
Edge Wavelength575nm
ReflectionR>98%
TransmissionT>85%

General Filter Specifications

Diameter Dimensions25 mm
Diameter Tolerance (mounted)± 0.1 mm
EX Filter Thickness (mounted) 5.0 mm
EM Filter Thickness (mounted) 3.5 mm
Filter Thickness Tolerance (mounted)± 0.1 mm
Clear Aperture≥ 21 mm
DM Square Dimensions 36 x 25.7 x 1.05mm
DM Thickness(unmounted)1.05 mm
Thickness Tolerance (unmounted)± 0.1 mm
Scratch-Dig60-40
Flatnessλ/4
Parallelism30″
SubstratesFused Silica, B270
Compatible MicroscopesMost common Nikon, Olympus, Zeiss and Leica microscopes
