Part Number: PN 33012 DAPI/FITC/Texas Red
| Type | Size | Part Number | AOI | Price |
|---|---|---|---|---|
| Trilpe Band Exciter | φ25 x 5.0 mm | 33012-BP405-495-573nm | 0° | $- |
| Triple Band Emitter | φ25 x 3.5 mm | 33012-BP460-533-630nm | 0° | $- |
| Triple Dichroic Mirror | 36 x 25.7 x 1.05mm | 33012-DM410-510-590nm | 45° | $- |
| Total: |
|
|||
Inquiry Form

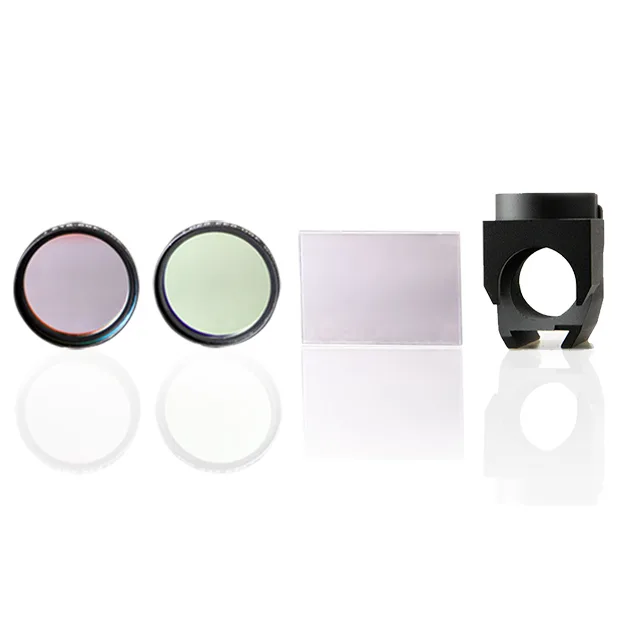

High-Performance FISH Triple band filter set DAPI/FITC/Texas Red, which contains triple bandpass excitation, emission (barrier) filters, and a triple dichroic mirror, optimized for use with common blue, green and red emitting fluorophores such as DAPI/FITC/Texas Red or proteins BFP/eGFP/mCherry.Our standard filter sets are offered with 25mm round excitation and emission filters and 36×25.7mm dichroic. These sizes are appropriate for a wide number of microscopes such as Olympus, Nikon, Leica, and Optika.
Optical Specifications
| Filter Type | Triple band filter set DAPI/FITC/Texas Red for FISH probes |
| Coating Type | Hard Coating |
| Angle of Incidence | 0°±5° |
| Exciter | 405-495-573nm |
| Transmission | >10% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200~1100nm |
| Angle of Incidence | 0°±5° |
| Emitter | 460-533-630nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200～1100nm |
| Angle of Incidence | 45°±1° |
| Edge Wavelength | 410-510-590nm |
| Reflection | R>98% |
| Transmission | T>85% |
General Filter Specifications
| Diameter Dimensions | 25 mm |
| Diameter Tolerance (mounted) | ± 0.1 mm |
| EX Filter Thickness (mounted) | 5.0 mm |
| EM Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| DM Square Dimensions | 36 x 25.7 x 1.05mm |
| DM Thickness(unmounted) | 1.05 mm |
| Thickness Tolerance (unmounted) | ± 0.1 mm |
| Flatness | λ/4 |
| Parallelism | 30″ |
| Scratch-Dig | 60-40 |
| Substrates | Fused Silica, B270 |
| Compatible Microscopes | Most common Nikon, Olympus, Zeiss and Leica microscopes |
