Part Number:30024 DAPI

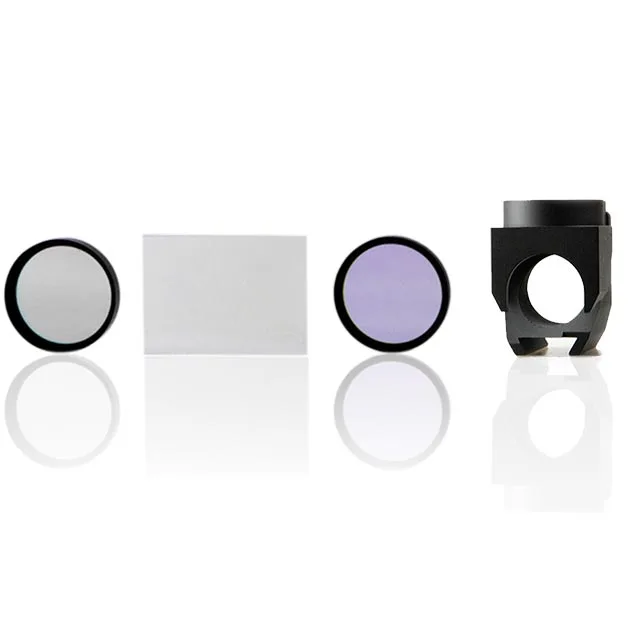

Individual filters and filter sets (no cube)，These filters sets contain individual filters.
| Type | Size | Part Number | AOI | Price |
|---|---|---|---|---|
| Single Band Exciter | φ25 x 5.0 mm | 30024-EX365 | 0° | $- |
| Single Band Emitter | φ25 x 3.5 mm | 30024-BP445 | 0° | $- |
| Single Dichroic Mirror | 36 x 25.7 x 1.05mm | 30024-DM405 | 45° | $- |
| Total: |
|
|||
Inquiry Form
High Contrast DAPI excitation emission filter set in the life science field, as it can pass through an intact cell membrane, it can be used to stain both live and fixed cells, optimized for achieving exceptionally low noise (background) yet high brightness, resulting in unsurpassed contrast (signal-to-noise ratio). Optolong used a hard-coated exciter working well under intense UV illumination of modern fluorescence light sources.
Fluorophore Displayed: DAPI, AMCA (Aminomethylcoumarin), LysoSensor Blue, Alexa Fluor 350™, Marina Blue, Pacific Blue™, sgBFP™
Optical Specifications
| Filter Type | 30024 Single band UV filter set DAPI |
| Coating Type | Hard Coating |
| Angle of Incidence | 0°±5° |
| Exciter | 365nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200~900nm |
| Angle of Incidence | 0°±5° |
| Emitter | 445nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 300～1100nm |
| Angle of Incidence | 45°±1° |
| Edge Wavelength | 405nm |
| Reflection | R>98% |
| Transmission | T>85% |
General Filter Specifications
| Diameter Dimensions | 25 mm |
| Diameter Tolerance (mounted) | ± 0.1 mm |
| EX Filter Thickness (mounted) | 5.0 mm |
| EM Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| DM Square Dimensions | 36 x 25.7 x 1.05mm |
| DM Thickness(unmounted) | 1.05 mm |
| Thickness Tolerance (unmounted) | ± 0.1 mm |
| Flatness | λ/4 |
| Parallelism | 30″ |
| Scratch-Dig | 60-40 |
| Substrates | Fused Silica, B270 |
| Compatible Microscopes | Most common Nikon, Olympus, Zeiss and Leica microscopes |
