Part Number: 30031 Fish Aqua

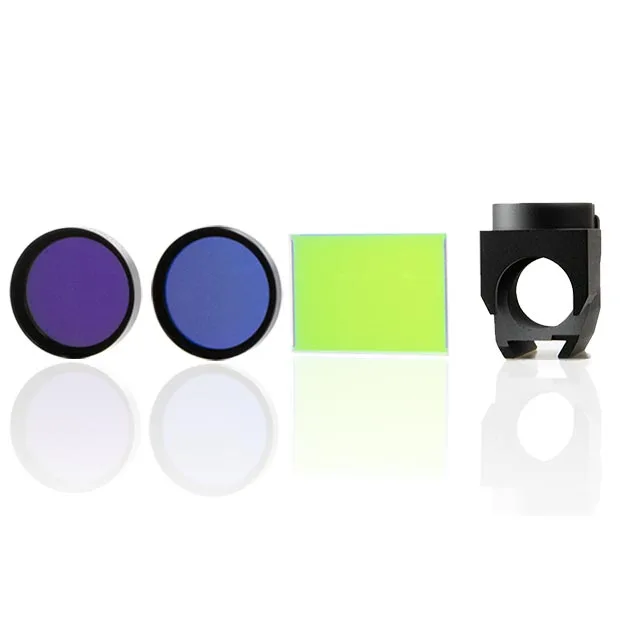

Individual filters and filter sets (no cube)，These filters sets contain individual filters.
| Type | Size | Part Number | AOI | Price |
|---|---|---|---|---|
| Single Band Exciter | φ25 x 5.0 mm | 30031-BP440nm | 0° | $- |
| Single Band Emitter | φ25 x 3.5 mm | 30031-BP480nm | 0° | $- |
| Single Dichroic Mirror | 36 x 25.7 x 1.05mm | 30031-DM460nm | 45° | $- |
| Total: |
|
|||
Inquiry Form
This is a narrow single band filter set priority for Fish Aqua that provided high-performance bandpass emission blue excitation filter combination.Ideal for use with: CFP (ECFP),DEAC,SpectrumAqua,Aqua 431,ATTO 425
Optical Specifications
| Filter Type | 30031 Single band filter set Fish Aqua |
| Coating Type | Hard Coating |
| Angle of Incidence | 0°±5° |
| Exciter | 440nm |
| Transmission | >80% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200~900nm |
| Angle of Incidence | 0°±5° |
| Emitter | 480nm |
| Transmission | >85% |
| Central Blocking | OD>5 |
| Cutoff Blocking | OD>3 |
| Blocking Band | 200～1000nm |
| Angle of Incidence | 45°±1° |
| Edge Wavelength | 460nm |
| Reflection | R>98% |
| Transmission | T>85% |
General Filter Specifications
| Diameter Dimensions | 25 mm |
| Diameter Tolerance (mounted) | ± 0.1 mm |
| EX Filter Thickness (mounted) | 5.0 mm |
| EM Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| DM Square Dimensions | 36 x 25.7 x 1.05mm |
| DM Thickness(unmounted) | 1.05 mm |
| Thickness Tolerance (unmounted) | ± 0.1 mm |
| Flatness | λ/4 |
| Parallelism | 30″ |
| Scratch-Dig | 60-40 |
| Substrates | Fused Silica, B270 |
| Compatible Microscopes | Most common Nikon, Olympus, Zeiss and Leica microscopes |
